MikroTik RouterBOARD RB750Gr3
- 5 × Gigabit Ethernet
- Dual-core 880 MHz
- 256 MB RAM
- USB + microSD
- PoE in
- RouterOS L4

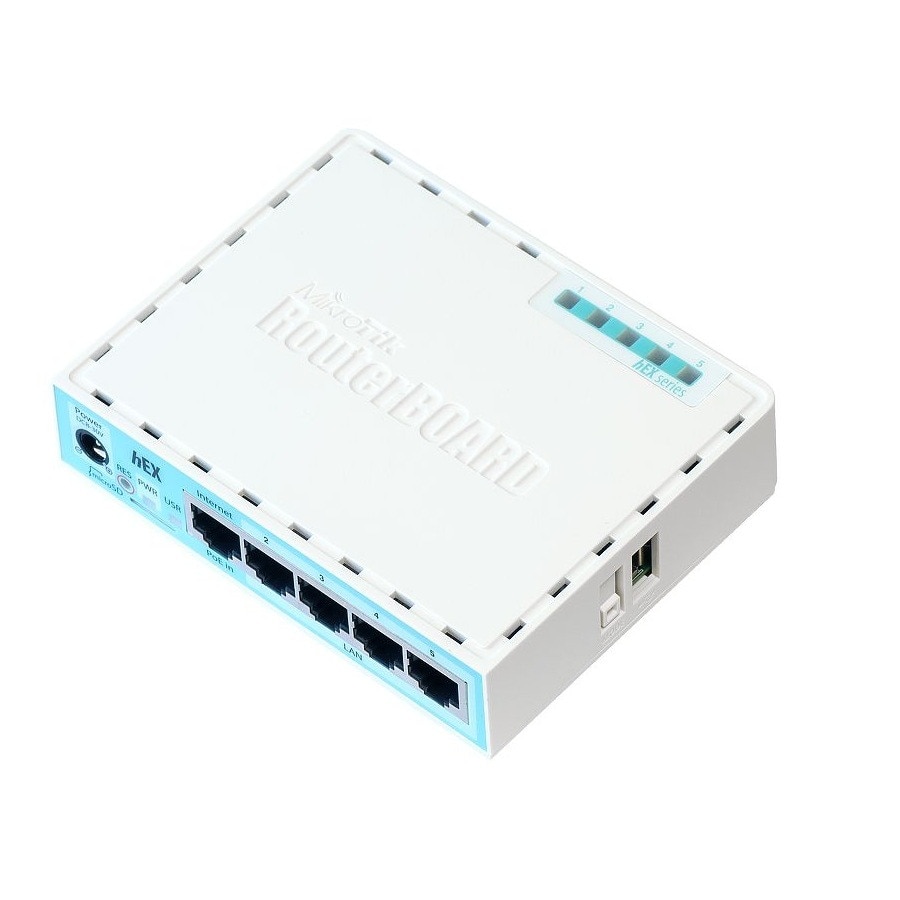

MikroTik RouterBOARD RB750Gr3
5 × Gigabit Ethernet, dual-core 880 MHz CPU, 256 MB RAM, USB, microSD, RouterOS L4
The hEX is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. The device has a full size USB port. This updated revision brings several improvements in performance.
It is affordable, small and easy to use, but at the same time comes with a very powerful dual core 880 MHz CPU and 256 MB RAM, capable of all the advanced configurations that RouterOS supports.
IPsec hardware encryption (~470 Mbps) and The Dude server package are supported. The microSD slot provides improved read/write speed for file storage and Dude.
At a glance
- Dual-core 880 MHz CPU with 256 MB of RAM
- Five Gigabit Ethernet ports, PoE in on port 1
- IPsec hardware encryption at roughly 470 Mbps
- microSD slot for fast local storage and The Dude
- Full-size USB type A port
- Runs RouterOS with a level 4 licence
Specifications
Full technical specification for the MikroTik RouterBOARD RB750Gr3.
| CPU | MT7621A |
|---|---|
| CPU nominal frequency | 880 MHz |
| CPU core count | 2 |
| Size of RAM | 256 MB |
| 10/100 Ethernet ports | None |
| 10/100/1000 Ethernet ports | 5 |
| SFP ports | 0 |
| SFP+ ports | 0 |
| MiniPCI slots | 0 |
| MiniPCI-e slots | 0 |
| Number of USB ports | 1 |
| USB slot type | USB type A |
| Serial port | None |
| Power Jack | 1 |
| PoE in | Yes |
| PoE out | No |
| Supported input voltage | 8 V – 30 V |
| Max power consumption | 5 W |
| Voltage monitor | Yes |
| CPU temperature monitor | No |
| PCB temperature monitor | Yes |
| Current monitor | No |
| Dimensions | 113 × 89 × 28 mm |
| Operating temperature range | −30 °C to +70 °C |
| Operating system | RouterOS |
