5G Accessories · Mounting Hardware

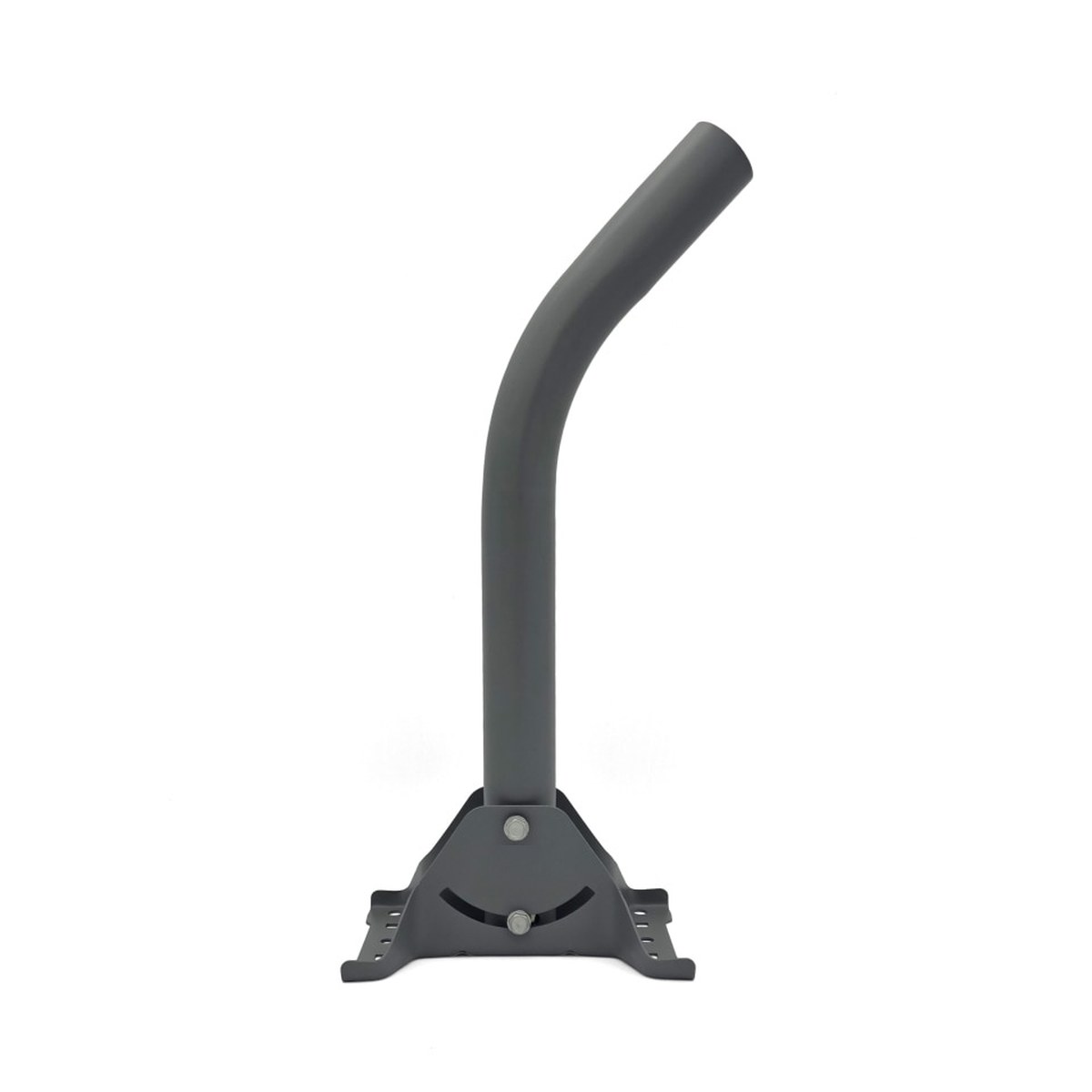

J-Arm Heavy-Duty Universal 18-inch Mount
Pre-assembled powder-coated steel J-arm with a 470 mm (18 in) mast, shipped with the lag screws, hose clamps and grounding screw needed to put it up.
Model HBE-J-ARM-18- Galvanized steel
- Powder coated
- 470 mm (18 in) mast
- 42 mm OD
- 1.6 mm base
- Ships pre-assembled
- Fixings included
About the HBE-J-ARM-18
The HBE-J-ARM-18 heavy-duty universal mount saves you time and is easy to install, arriving pre-assembled with an 18-inch mast rather than as a box of parts to work out on a ladder.
It is galvanized steel under a powder-coated finish, so the arm that goes up on the wall is the same one that is still there after a few winters. The base plate is 1.6 mm and the mast 1.2 mm at 42 mm outside diameter, and the slot in the base lets the arm be angled before the bolts are pulled tight.
What’s in the box
- 2 × 3″ fully threaded lag screws
- 4 × 2″ fully threaded lag screws
- 2 × heavy-duty hose clamps
- 1 × grounding screw
| General | Model |
|
|---|---|---|
| Material |
| |
| Finish |
| |
| Base Thickness |
| |
| Pole Mount |
| |
| Length |
| |
| Assembly |
| |
| Unit Weight (lbs) |
| |
| In the box | Lag screws, 3″ fully threaded |
|
| Lag screws, 2″ fully threaded |
| |
| Heavy-duty hose clamps |
| |
| Grounding screw |
|
