About the HBE-CAT6
The HBE-CAT6 is the patch cable we reach for on an HBE-5G install: the run from the outdoor router or antenna back to the equipment indoors, made off at both ends and ready to plug in.
It carries 10 Gbps over 550 MHz of bandwidth and is backward compatible with Cat 5 and Cat 5e, so it drops into 10BASE-T, 100BASE-TX, 1000BASE-T and 10GBASE-T networks without anything else changing. Eight cut lengths cover the short jump from a switch to a desk and the long pull from a roof mount to a rack.

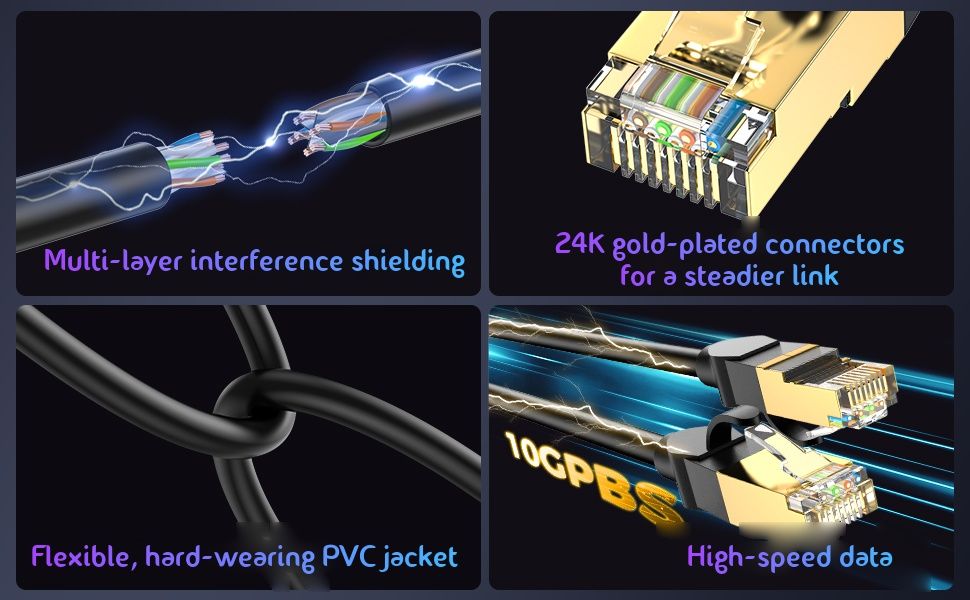

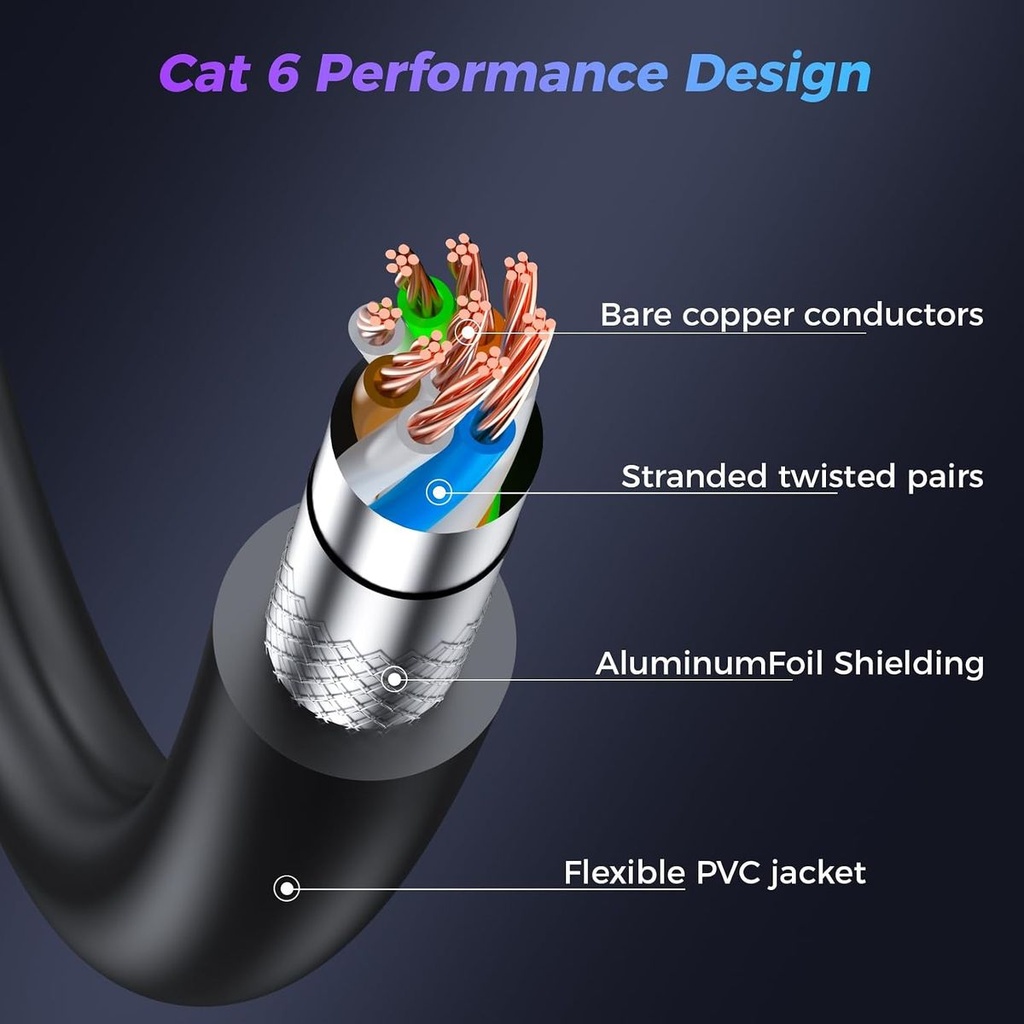

What it is built from
- 26 AWG bare copper conductors in stranded twisted pairs
- Aluminium foil shielding against crosstalk and electromagnetic interference

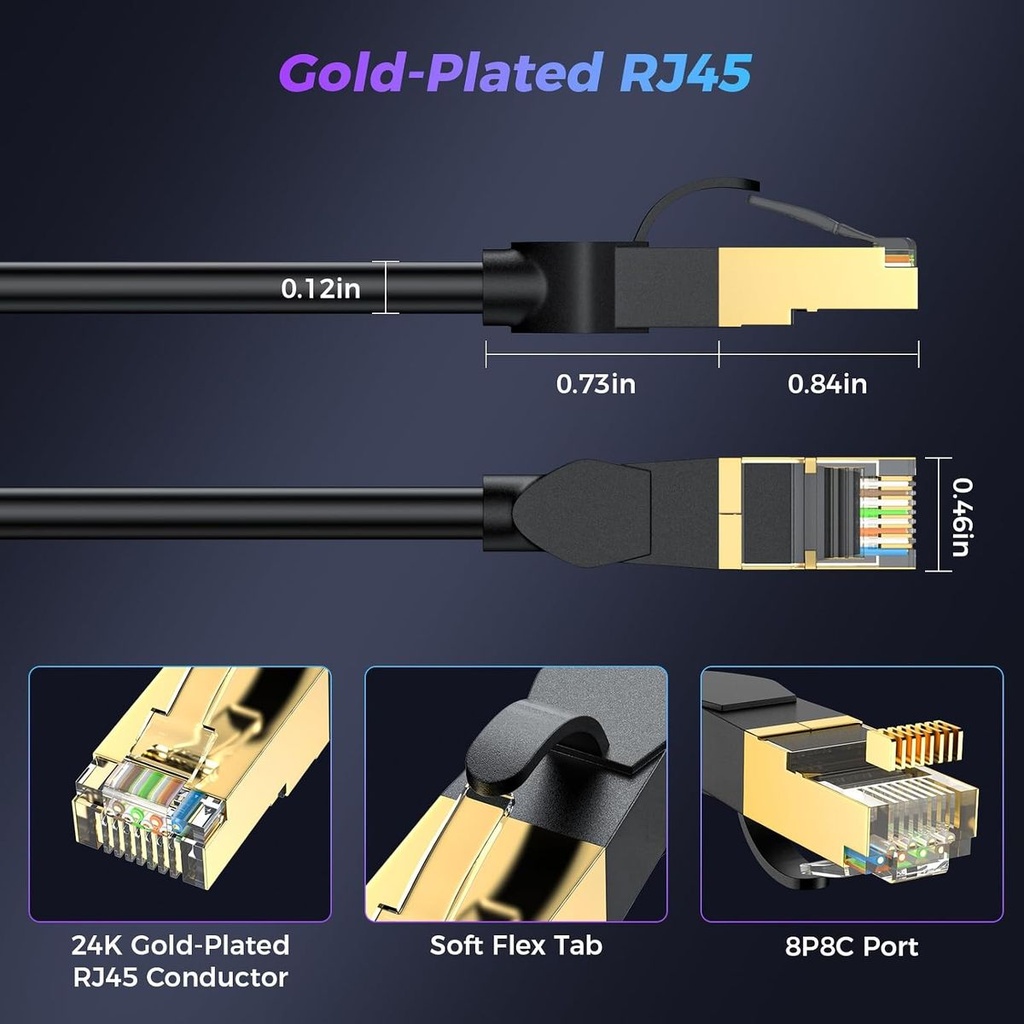

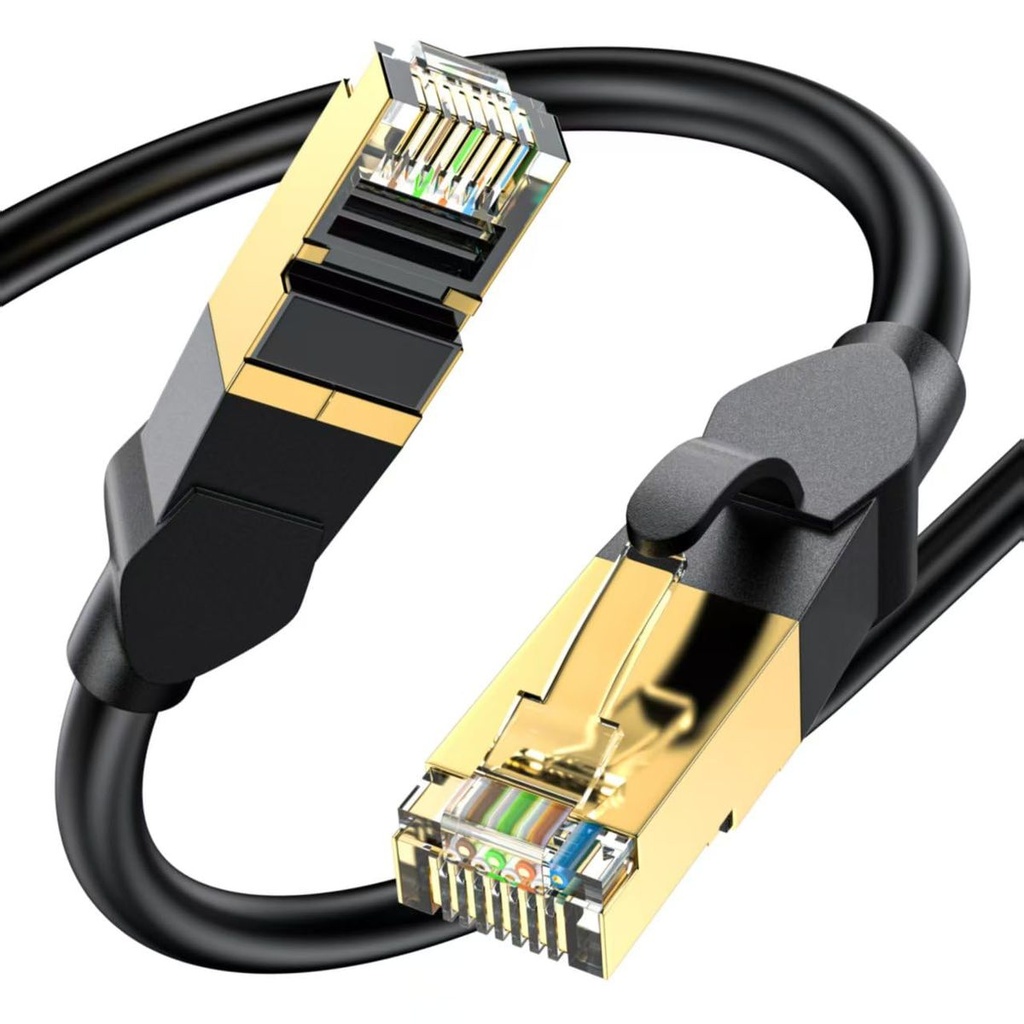

- Gold-plated 8P8C RJ45 contacts on moulded strain-relief boots
- Dual-layer jacket — UV-resistant PVC over LLDPE
Where it goes

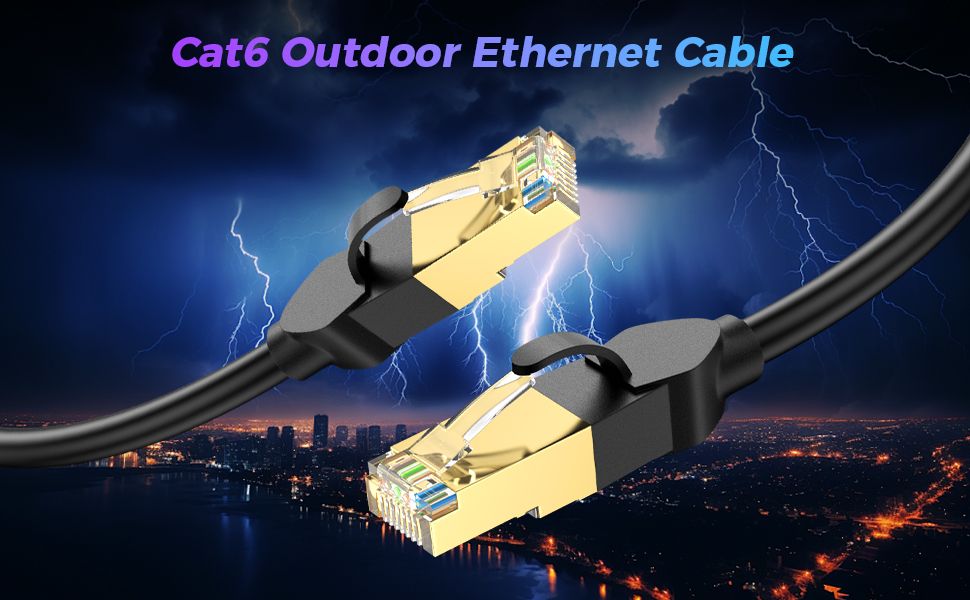

The jacket is rated from −20 °C to 80 °C (−4 °F to 176 °F) and is waterproof, sun-proof and abrasion resistant, so the same cable does the exposed roof run and the tidy run along a skirting board. Inside, it plugs into routers, modems, switches, PCs and laptops, printers, network servers and NAS boxes, VoIP phones, IP cameras, smart TVs, media players and PS5, PS4 or Xbox consoles — plug and play, no configuration.
It is built to TIA/EIA-568B on a CM-grade PVC sheath, is ETL verified and is RoHS compliant.
| General | Model |
|
|---|---|---|
| Cable Type |
| |
| Colour |
| |
| Lengths |
| |
| Performance | Bandwidth |
|
| Transmission Rate |
| |
| Networks |
| |
| Backward Compatibility |
| |
| Construction | Conductor |
|
| Shielding |
| |
| Jacket |
| |
| Cable Outside Diameter |
| |
| Connectors | Type |
|
| Strain Relief |
| |
| Connector Dimensions |
| |
| Environment | Installation |
|
| Operating Temperature |
| |
| Weather Resistance |
| |
| Standards | Wiring |
|
| Compliance |
|
