Name: HBE-AX3000 Res/Business Router
Price: 69.87 USD

Key Features

Dual-band Wi-Fi 6, AX3000

574 Mbps at 2.4 GHz and 2402 Mbps at 5 GHz, with 160 MHz channel support on the 5 GHz band.

Six 5 dBi external antennas

High-gain omnidirectional antennas around the chassis, so coverage reaches the far rooms rather than dying at the first wall.

4 + 1 Gigabit ports

One Gigabit WAN port for the broadband uplink and four Gigabit LAN ports for wired devices at full speed.

Mesh, AP and repeater modes

Run it as a gateway, add it to an existing wired network as an access point, extend Wi-Fi as a repeater, or pair it with compatible Mesh units.

Coverage, wiring and deployment

What the six antennas, the Gigabit ports and the four operating modes mean once the unit is installed.

Coverage and wired speed

Six external high-gain antennas. Six 5 dBi antennas broadcast a strong, stable signal across a home or small office, reducing dead zones in hard-to-reach areas.
Full Gigabit Ethernet. One Gigabit WAN port and four Gigabit LAN ports for high-speed broadband and stable wired connections. Cat5e or better is recommended.
160 MHz channels. The 5 GHz radio supports 20, 40, 80 and 160 MHz channel widths for the full 2402 Mbps rate where the environment allows it.
Built for many devices. OFDMA and MIMO improve efficiency in busy environments — family streaming, gaming, video calls, office work and smart-home gear at the same time.

Deployment and access

Four operating modes. DHCP router, PPPoE router, access point over Ethernet, or wireless repeater to extend an existing network.
Mesh expansion and WPS. A short press pairs WPS devices; holding the button for more than five seconds starts Mesh pairing with compatible units.
Multi-protocol VPN. OpenVPN, PPTP and L2TP for encrypted remote access, subject to the VPN service and network in use.
Straightforward management. NAT, firewall and DHCP server built in, with Power, Wi-Fi and Network status LEDs on the front edge.

Technical Specifications

HBE-AX3000 Res/Business Router
Model	HBE-AX3000
Wireless standards	IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6)
Operating System	OpenWrt
Wi-Fi bands	2.4 GHz + 5 GHz dual band
Combined wireless rate	Up to 3000 Mbps
Wi-Fi rate	2.4 GHz: up to 574 Mbps 5 GHz: up to 2402 Mbps
Frequency range	2.4 GHz: 2.412–2.472 GHz 5 GHz: 5.180–5.825 GHz
Channel width	2.4 GHz: 20 / 40 MHz 5 GHz: 20 / 40 / 80 / 160 MHz
Antennas	6 × 5 dBi external, for 2.4 GHz and 5 GHz
Interface	1 × 10/100/1000 Mbps RJ45 WAN 4 × 10/100/1000 Mbps RJ45 LAN 1 × WPS / Mesh button 1 × Reset button
Recommended cabling	Cat5e or higher for gigabit performance
Operating modes	Repeater / AP / DHCP router / PPPoE router
Router functions	NAT, firewall, DHCP server and client
VPN protocols	OpenVPN, PPTP, L2TP
Wireless security	WPA-PSK / WPA2-PSK / WPA–WPA2 mixed mode
LED Indicator	Power / Wi-Fi / Network
Default management IP	192.168.6.1
Modem	None built in — an upstream modem, ONT or gateway is required
Power input	DC 12 V / 1 A
Reset	Press and hold 8–12 seconds to restore factory settings
WPS / Mesh button	Press 2 seconds for WPS Hold more than 5 seconds to start Mesh pairing

Package contents

One (1) HBE-AX3000 Res/Business Router
One (1) DC 12 V power adapter
One (1) Ethernet cable
User manual

Data SheetPDF · 2.6 MB · six-antenna model, 4 LAN Download

A closer look

Speed, coverage, wiring, VPN and the operating modes — the detail shots.

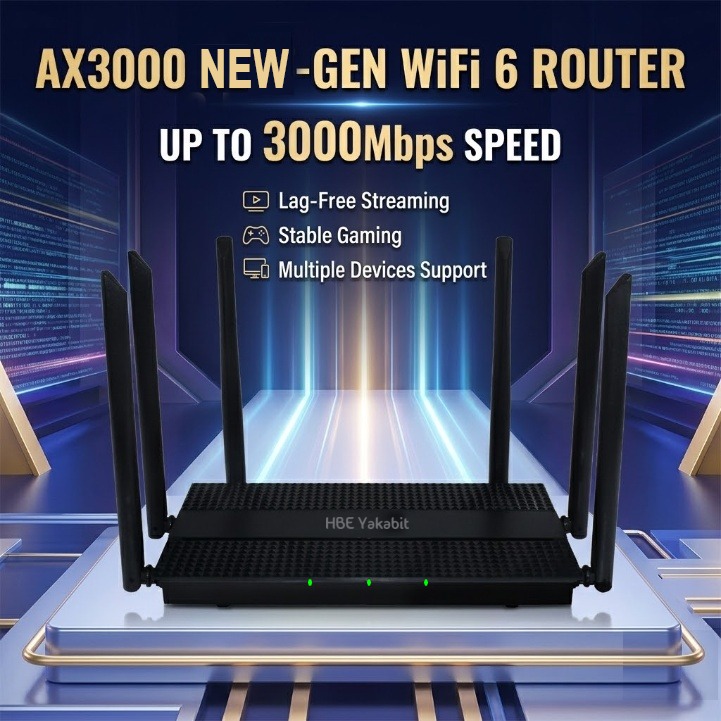

AX3000 dual-band Wi-Fi 6 router — up to 3000 Mbps for lag-free streaming, stable gaming and many devices at once

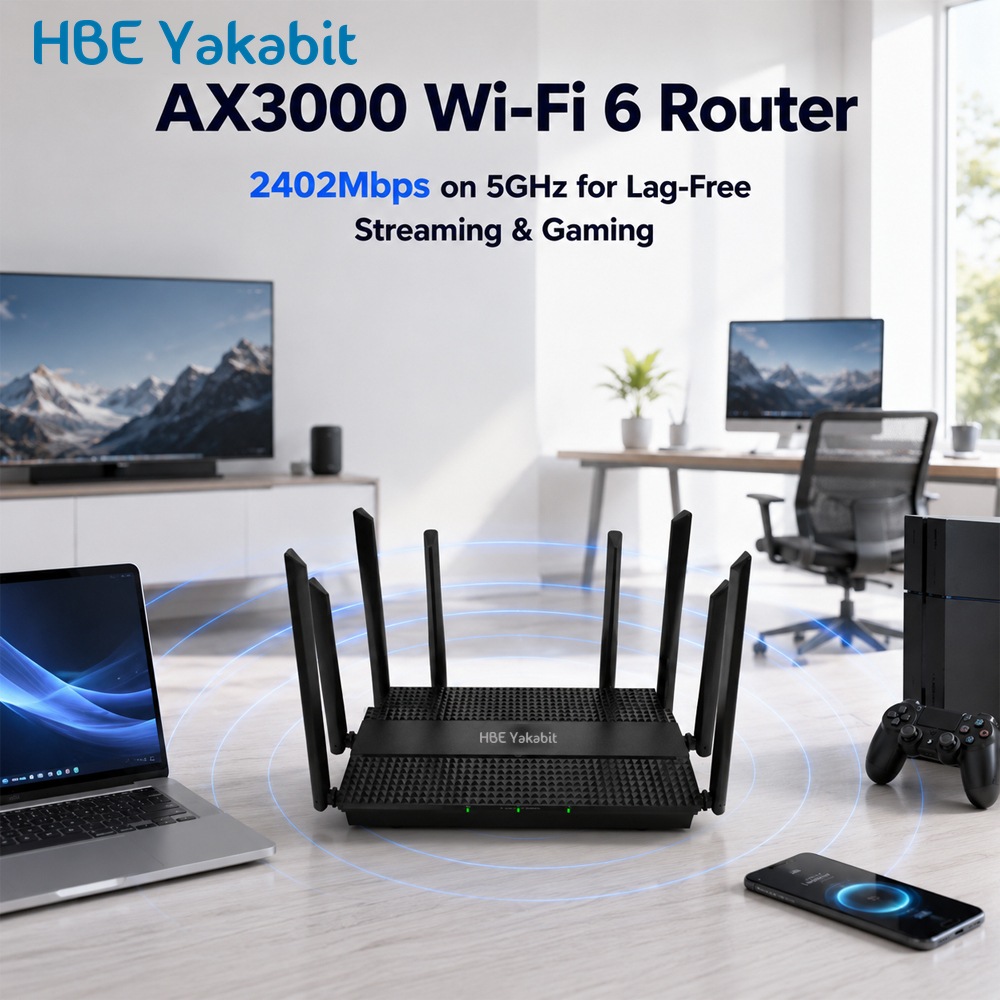

HBE-AX3000 in a home office — 2402 Mbps on the 5 GHz band for lag-free streaming and gaming

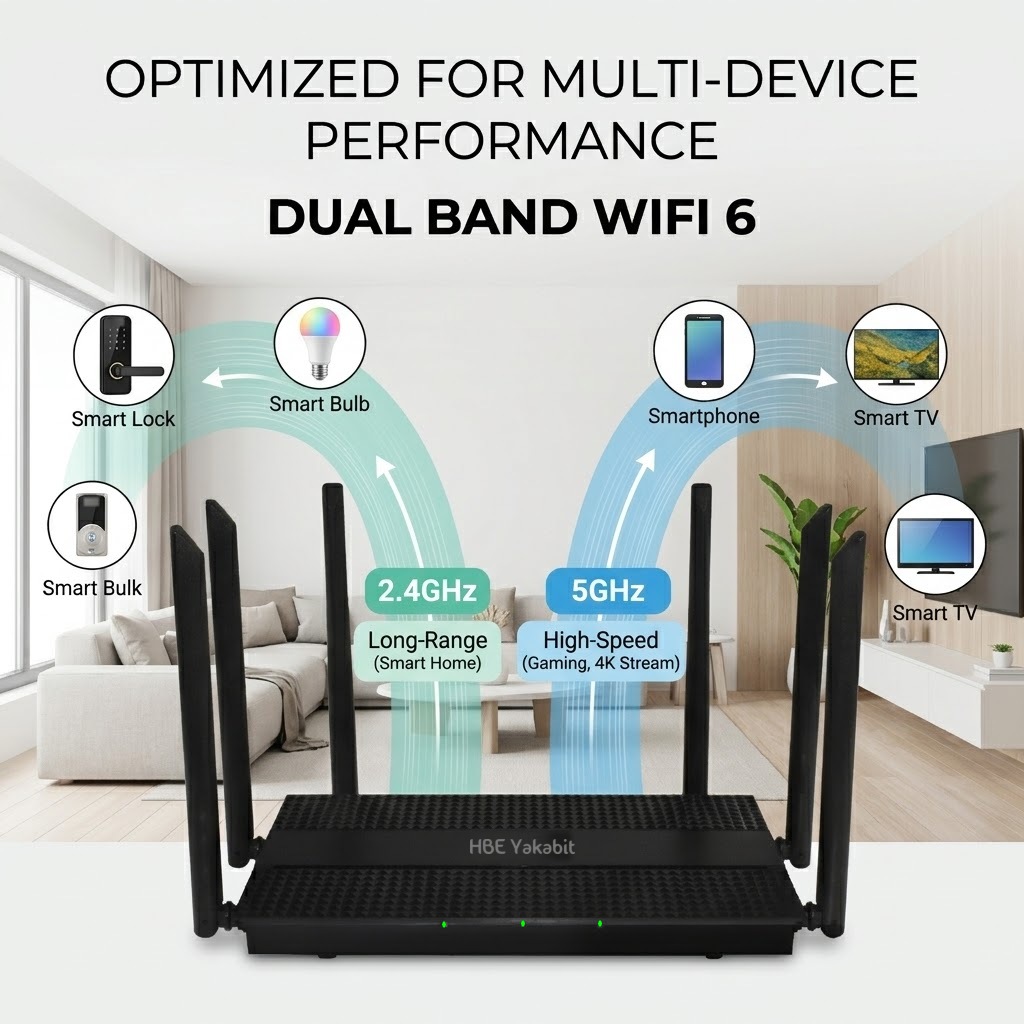

Dual-band Wi-Fi 6 — 2.4 GHz for long-range smart-home devices, 5 GHz for high-speed gaming and 4K streaming

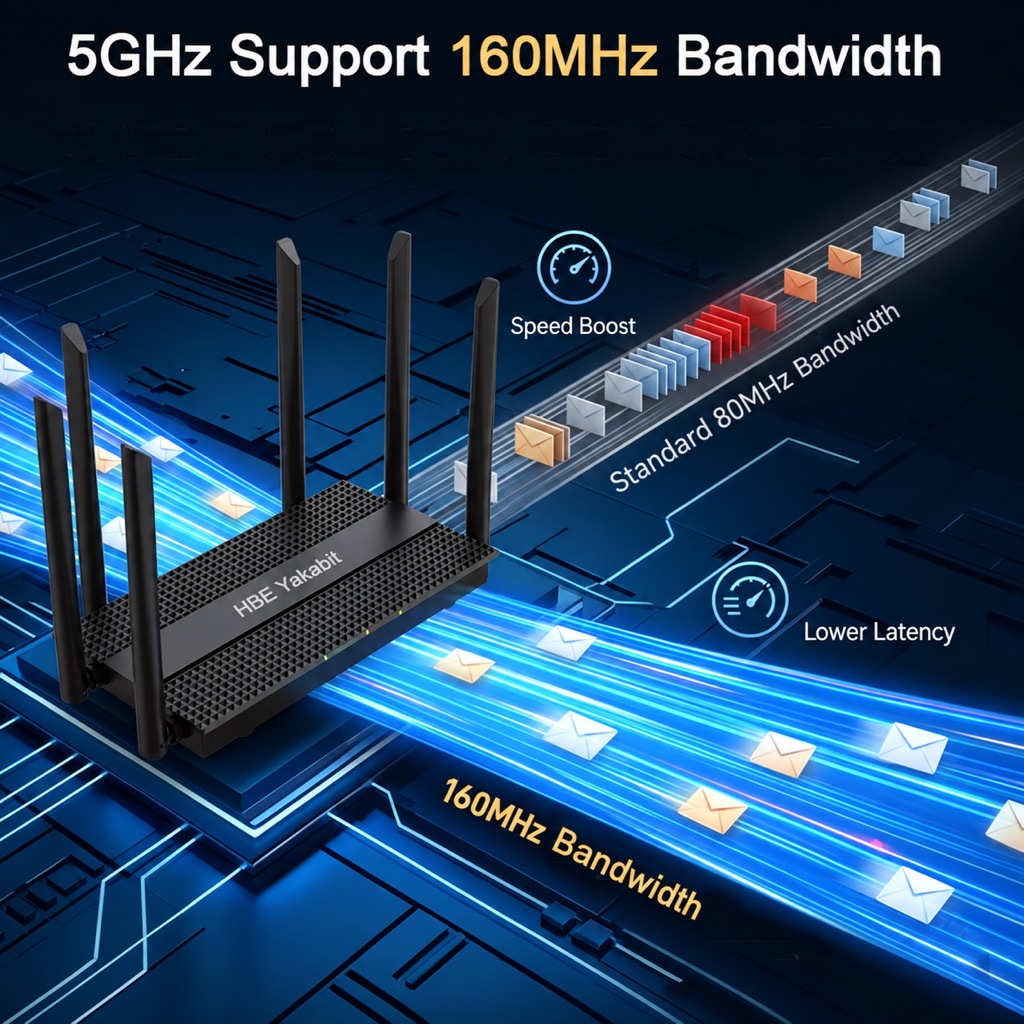

160 MHz channel width on the 5 GHz band for higher throughput and lower latency than a standard 80 MHz channel

OFDMA and MIMO — PC, phone, TV and console connected at the same time without congestion

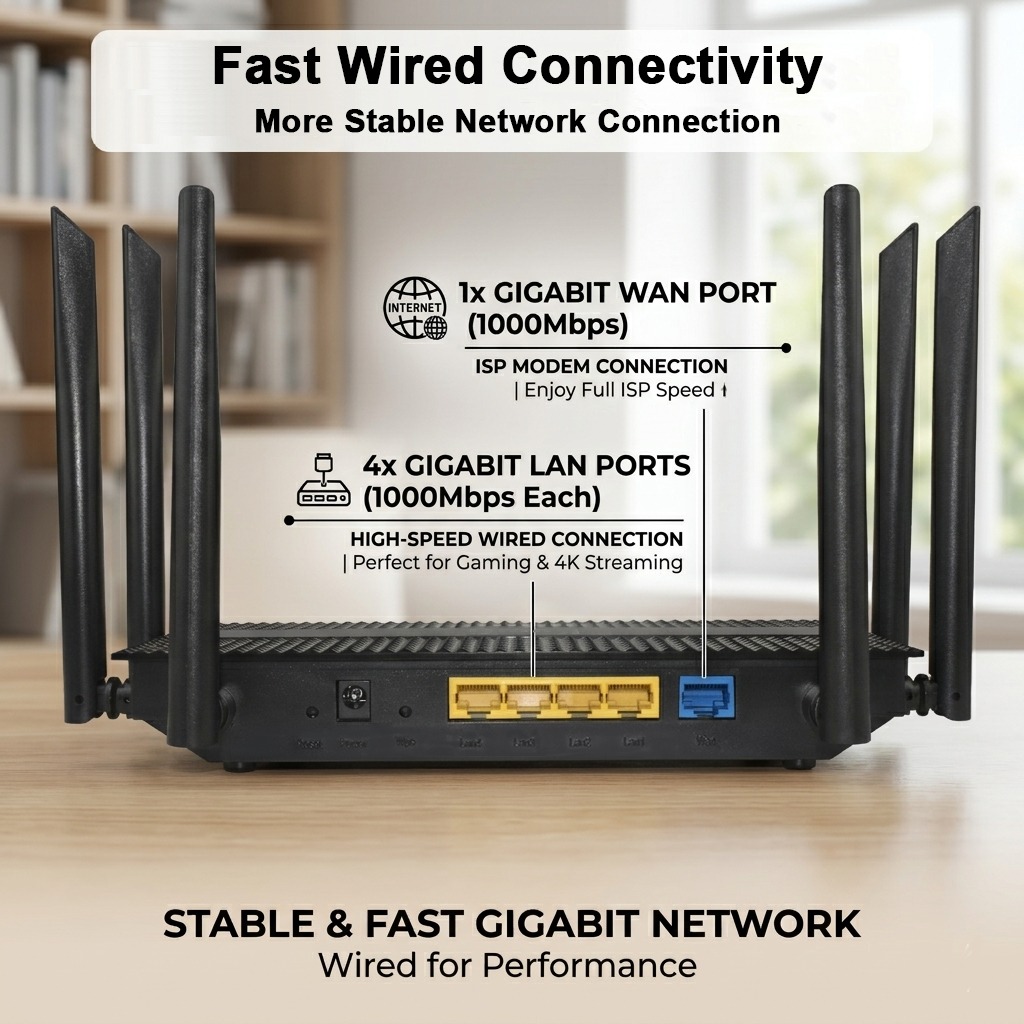

Rear panel — one Gigabit WAN port and four Gigabit LAN ports for full-speed wired connections

Built-in VPN client — OpenVPN, PPTP and L2TP for encrypted remote access

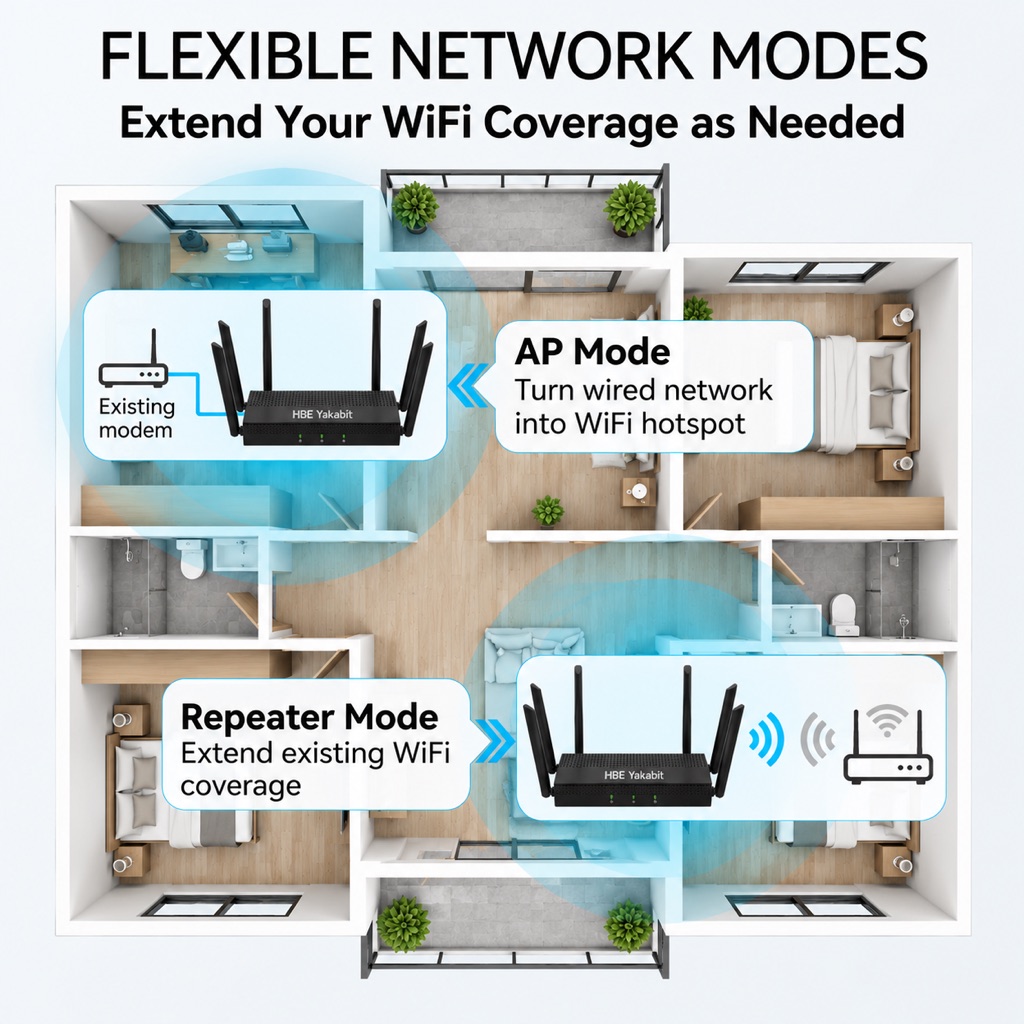

Flexible network modes — access point mode turns a wired network into Wi-Fi, repeater mode extends existing coverage

AX3000 compared with an AX1200 router — 2.5 times the rated wireless throughput

Wireless rates are theoretical PHY maximums; real-world performance varies with environment, client capability and network conditions. Available channels and frequencies vary by country and region. The specifications on this page and the data sheet describe the six-antenna model — check the antenna and port count on your unit before working from the sheet.
