HBE-5G Outdoor Router

$ 549.00 $ 549.00
$ 549.00

Features

Add to cart
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us

Key Features

IP67 waterproof

IP67 Metal enclosure to protect from rain, sun, snow and thunderstorms — built to sit outside where the signal actually is.

5G NR NSA/SA, Sub-6 GHz

3GPP Release 16 NSA/SA operation with 4×4 MIMO downlink and worldwide band coverage.

Dual-band Wi-Fi 6

2.4 GHz at 600 Mbps and 5.8 GHz at 2400 Mbps, with six high-gain antennas.

Wall or pole mount

A sleek metal case with flexible installation — mount it on a wall or strap it to a pole.

Technical Specifications

HBE-5G Outdoor Router
Model
  • HBE-5G Outdoor Router
CPU
  • SDX75
Wi-Fi Frequency
  • 2.4G
Wi-Fi Standard
  • 2.4G: 802.11b/g/n/ax
  • 5.8G: 802.11b/g/n/ac/ax
Wi-Fi
  • 2.4GHz: 600Mbps
  • 5.8G: 2400Mbps
5G NR
  • 3GPP Release 16 NSA/SA operation, Sub-6 GHz
5G Network Mode
  • NSA/SA
5G/4G Data Rate
  • 5G SA Transmission Speed: 2.1Gbps/900Mbps (up to ISPs)
  • 5G NSA Transmission Speed: 2.5Gbps/650Mbps (up to ISPs)
  • LTE: Down 1.0 Gbps; UP 200 Mbps
5G Frequency Bands
  • 5G NR NSA
    • n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/ 78/ 79
  • 5G NR SA
    • n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/ 78/ 79
  • MIMO
    • Downlink: 4×4 MIMO on n1/n2/n3/n7/n25/n38/n40/n41/n48/n66/n77/n78/n79
4G & 3G Frequency Bands
  • Downlink Cat 19 / Uplink Cat 18
  • LTE-FDD
    • B1/ 2/ 3/ 4/ 5/ 7/ 8/ 12/ 13/ 14/ 17/ 18/ 19/ 20/ 25/ 26/ 28/ 29/ 30/ 32/ 66/ 71
  • LTE-TDD
    • B34/ 38/ 39/ 40/ 41/ 42/ 43/ 48
  • MIMO
    • DL: 4×4 MIMO on B2/B4/B5/B12/B13/B14/B17/B25/B26/B29/B30/B66/B41/B42/B43/B48/B71
  • WCDMA
    • B1/ 2/ 4/ 5/ 8/ 19
Modulation Mode
  • 5G
    • GMSK/8PSK/BPSK/QPSK/16QAM/64QAM/256QAM
  • Wi-Fi
    • 1024-QAM / OFDMA
Dimension
  • 145 × 130 × 45 mm
Interface
  • 1 × 10/100M/1000/2500 LAN
  • 1 Reset button
  • 2 × SIM card slots (4FF SIM card, supports SIM/USIM/UIM, standard 6-pin SIM card interface, supports 3V and 1.8V SIM cards: internal)
Reset
  • Long press 10 seconds to restore the factory settings.
LED Indicator
  • Battery Power, RF Signal, SIM Signals, System Signal
Power Consumption
  • < 24 W (PoE 48V/1A)
Environment
  • Operating temperature: -20°C ~ +50°C
  • Storage temperature: -40°C ~ +70°C
  • Humidity: 5%–95% non-condensing
Weight
  • 1.8 kg (includes accessories in the box)

Package contents

  • One (1) 5G Outdoor CPE Router
  • One (1) 1 m Cat6 Ethernet cable
  • One (1) POE Power Supply
  • Quick Start Guide

A closer look

PoE, mounting, IP67 weatherproofing, antennas and coverage — the detail shots.

PoE power supply — IEEE 802.3af/at compliant, 48V standard PoE

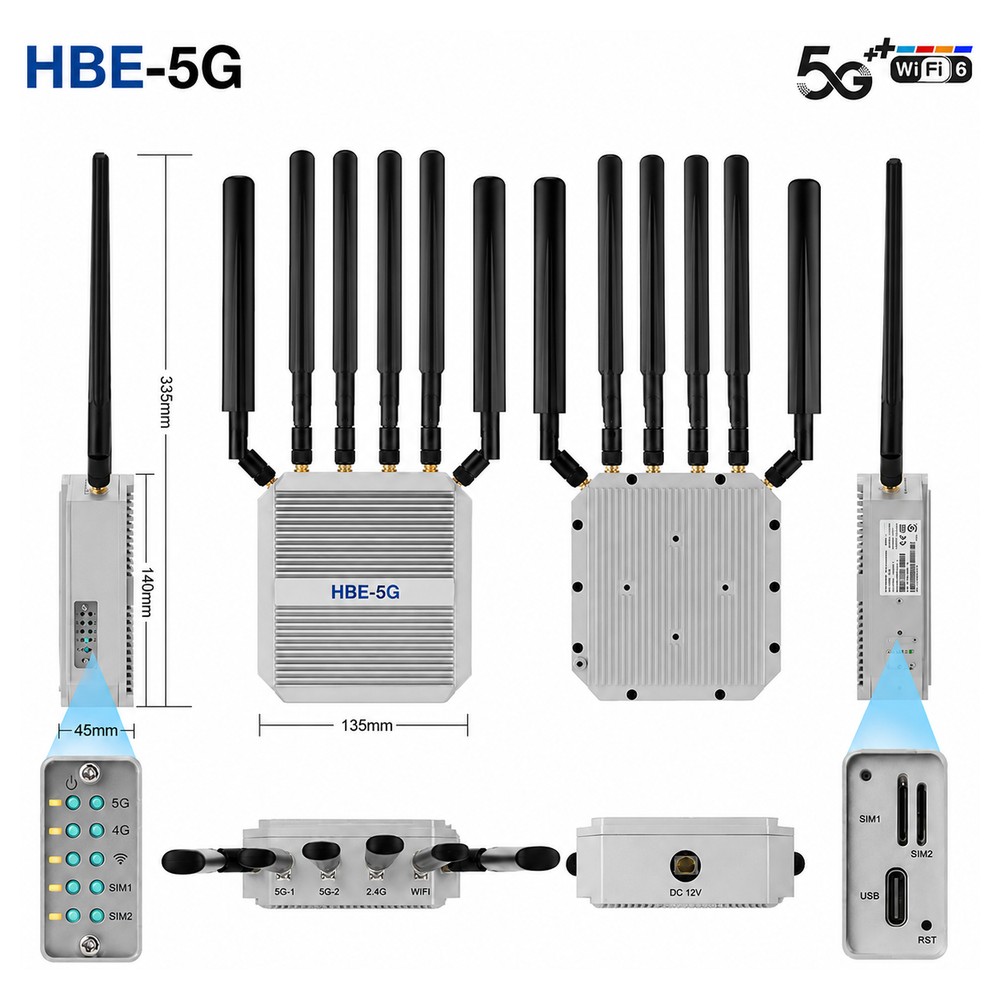

HBE-5G Outdoor Router dimensions and ports — 335 × 140 × 45 mm, LED panel, 5G/Wi-Fi antenna connectors, DC 12V, dual SIM, USB-C and reset
AC3000 Mbps — 5.8G 2400 Mbps and 2.4 GHz 600 Mbps
IP67 waterproof grade — sun, snow, rain and thunderstorm rated

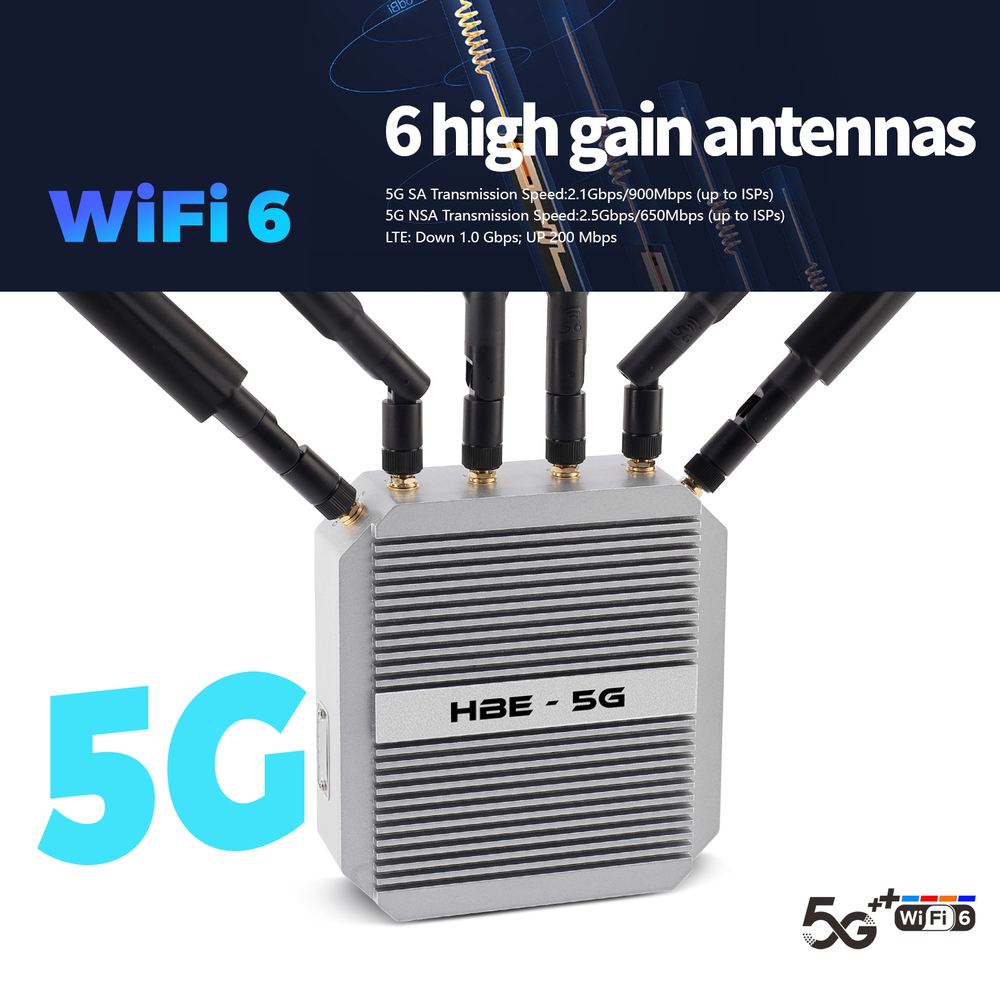

Six high-gain antennas with Wi-Fi 6

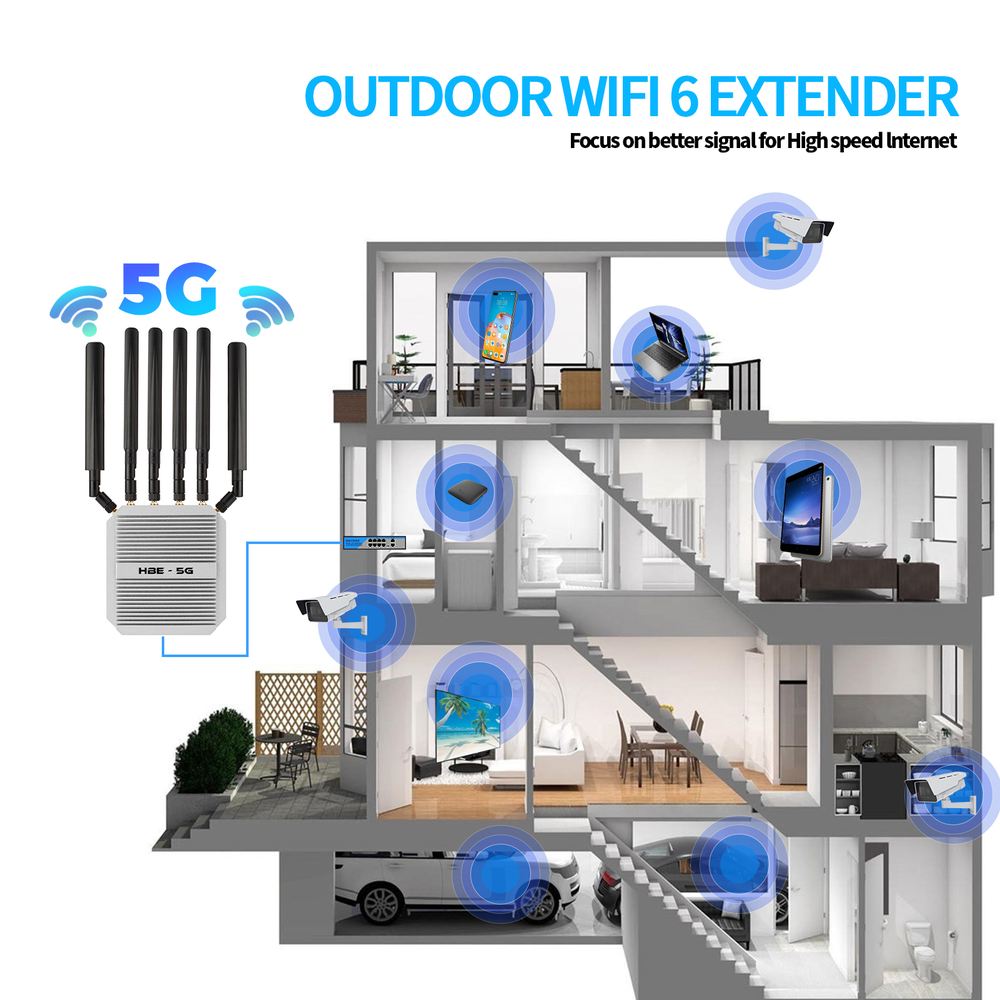

Outdoor Wi-Fi 6 extender — better signal for high-speed internet across the property

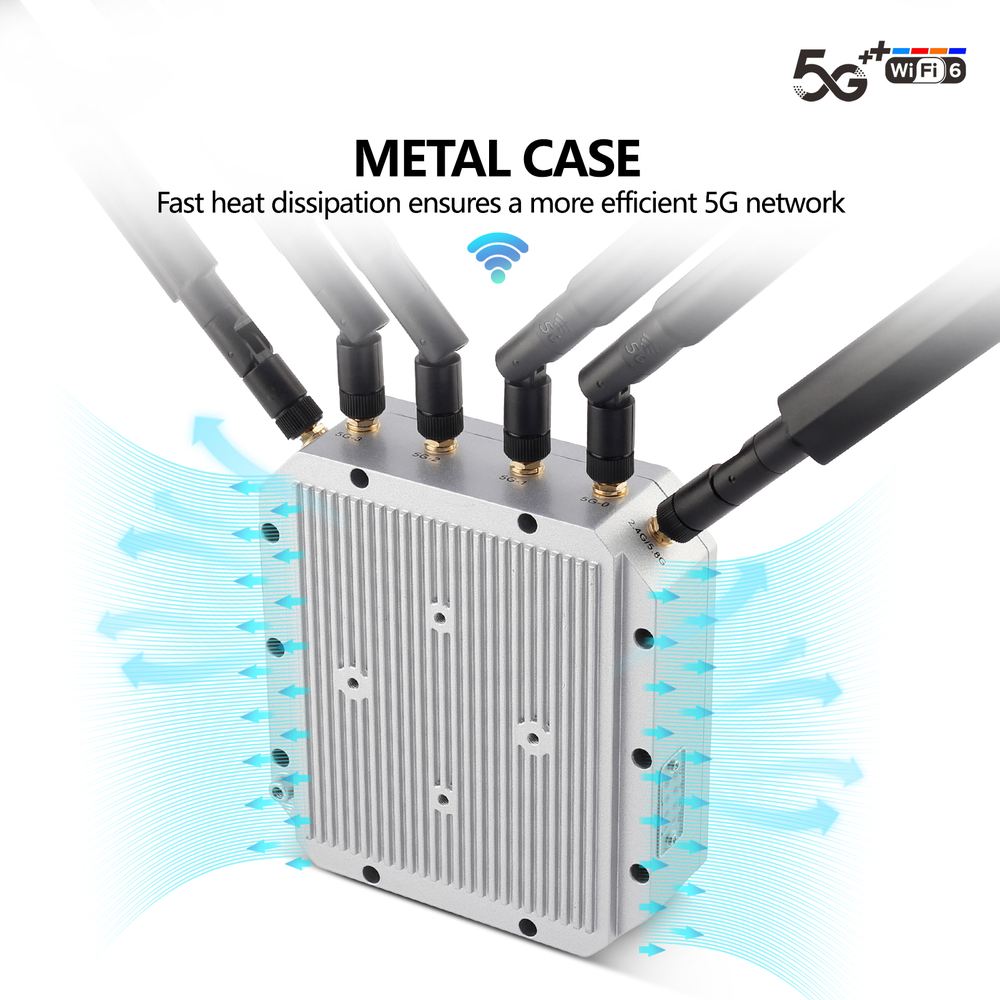

Metal case — fast heat dissipation for a more efficient 5G network

Throughput figures are theoretical maximums and depend on carrier network conditions.
